Xeon E5-2696 v2 processors

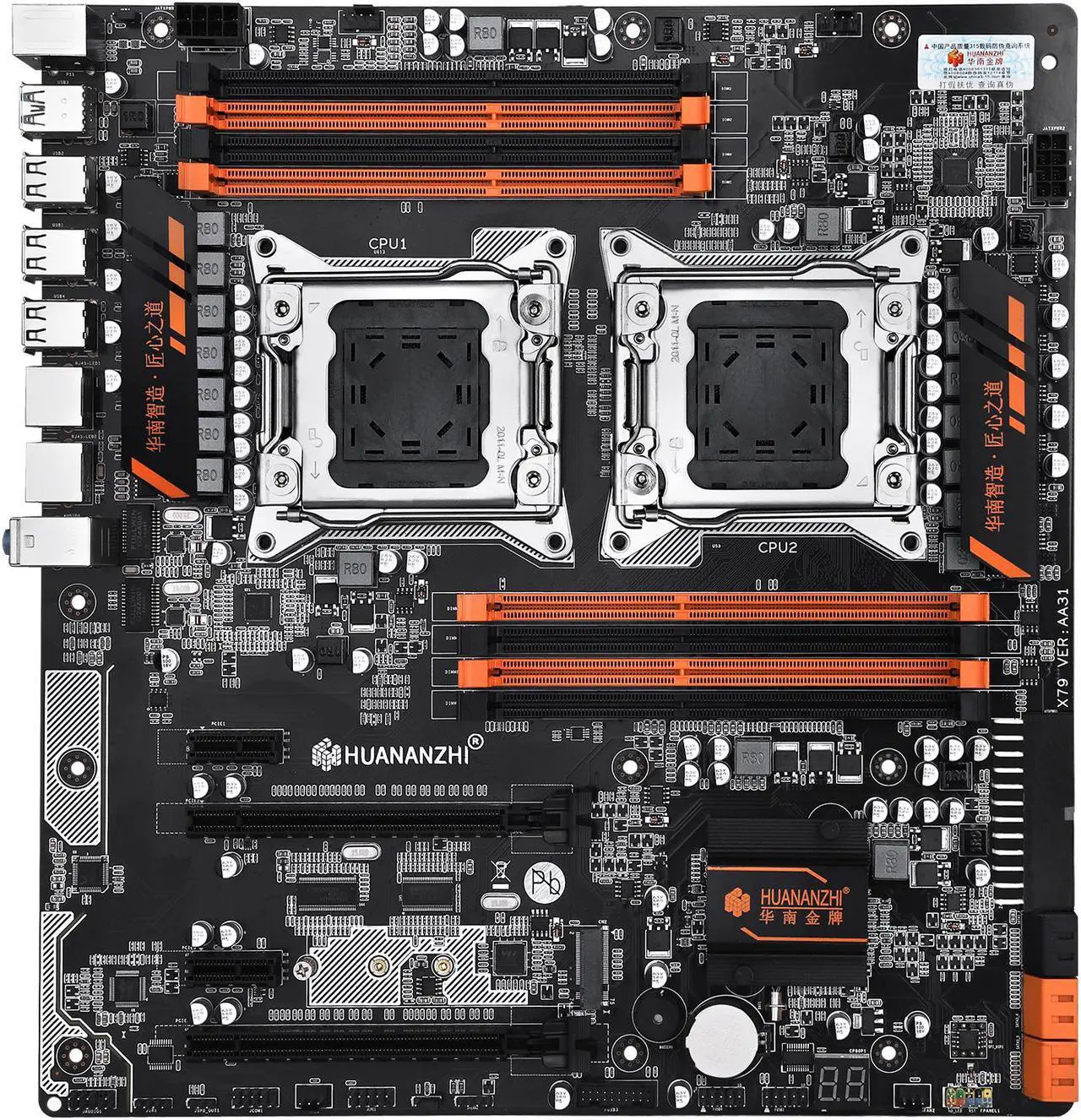

The Huananzhi X79-8D motherboard officially supports DDR3 ECC RDIMM (Registered DIMM) memory. When paired with your Xeon E5-2696 v2 processors, using Registered ECC memory is highly recommended for stability, as standard desktop (non-ECC) RAM is often unsupported by these high-end workstation configurations. [1, 2]
Memory Compatibility Specifications
The Huananzhi X79-8D is designed to support high-density server memory for professional and homelab use:
- Capacity Support: The board can support up to 256GB of total system memory across 8 DDR3 slots. [1]
- Standard Speeds: It officially lists support for DDR3-1600. While the Xeon E5-2696 v2 can support speeds up to 1866MHz, some Chinese X79 boards may downclock higher-speed RAM to 1600MHz or 1333MHz depending on the specific BIOS firmware. [1]
- Memory Type: It explicitly supports ECC Registered (RDIMM) and ECC (Unbuffered) memory. It is critical not to mix these types, as the system will not boot if RDIMM and UDIMM are installed together.
Troubleshooting Your No-Boot Issue
Since your system currently does not boot, check the onboard Debug LED for specific POST (Power-On Self Test) codes that indicate memory-related failures:
- Codes 50–55: These directly indicate a Memory initialization error. [3]
- Actionable Steps:
- Minimal Configuration: Test with only one CPU and a single stick of RAM in the primary slot (usually marked on the board or in the manual).
- Verify Voltage: Ensure your DDR3 RDIMMs are 1.5V modules, as some low-voltage (1.35V) DDR3L modules may have compatibility issues on older X79 boards if not specifically supported.
- CPU Seating: Uneven pressure from a CPU cooler or bent pins in the LGA 2011 socket can cause memory channels to fail, resulting in no-boot scenarios. [4]
Recommended Memory Upgrades
If you need to source compatible memory, here are high-performance options that match your CPU's peak supported speed:
| Product | Capacity | Type | Details |
|---|---|---|---|
| Crucial GB RDIMM | 16GB | DDR3-1866 PC3-14900 | CL13, 1.5V, Dual Ranked Registered ECC. |
| NEMIX RAM GB Kit | 64GB (4x16GB) | DDR3-1866 PC3-14900 | 2Rx4, 1.5V, 240-Pin Registered Server Kit. |
| (https://www.amazon.ca/MemoryMasters-DDR3-1866-PC3-14900-Compatible-Upgrade/dp/B07L6S2782) | 16GB | DDR3-1866 PC3-14900 | Registered ECC DIMM for workstation use. |
Are you seeing a specific two-digit code on the motherboard's debug display during your boot attempts? Reframing the issue with that code could help determine if the RAM itself is the cause.
